Crankcase Breather Oil Collection Tank

Fitted Headlights

Headlight & Turn Indicator Mount

Mudguard Stays

4 X 19" Avon Tyres

Exhaust Pipes

Double Hinged Exhaust Pipe Bracket

Milled Mudguard Stays

Carpet and Footwell

Tank and Rear Storage

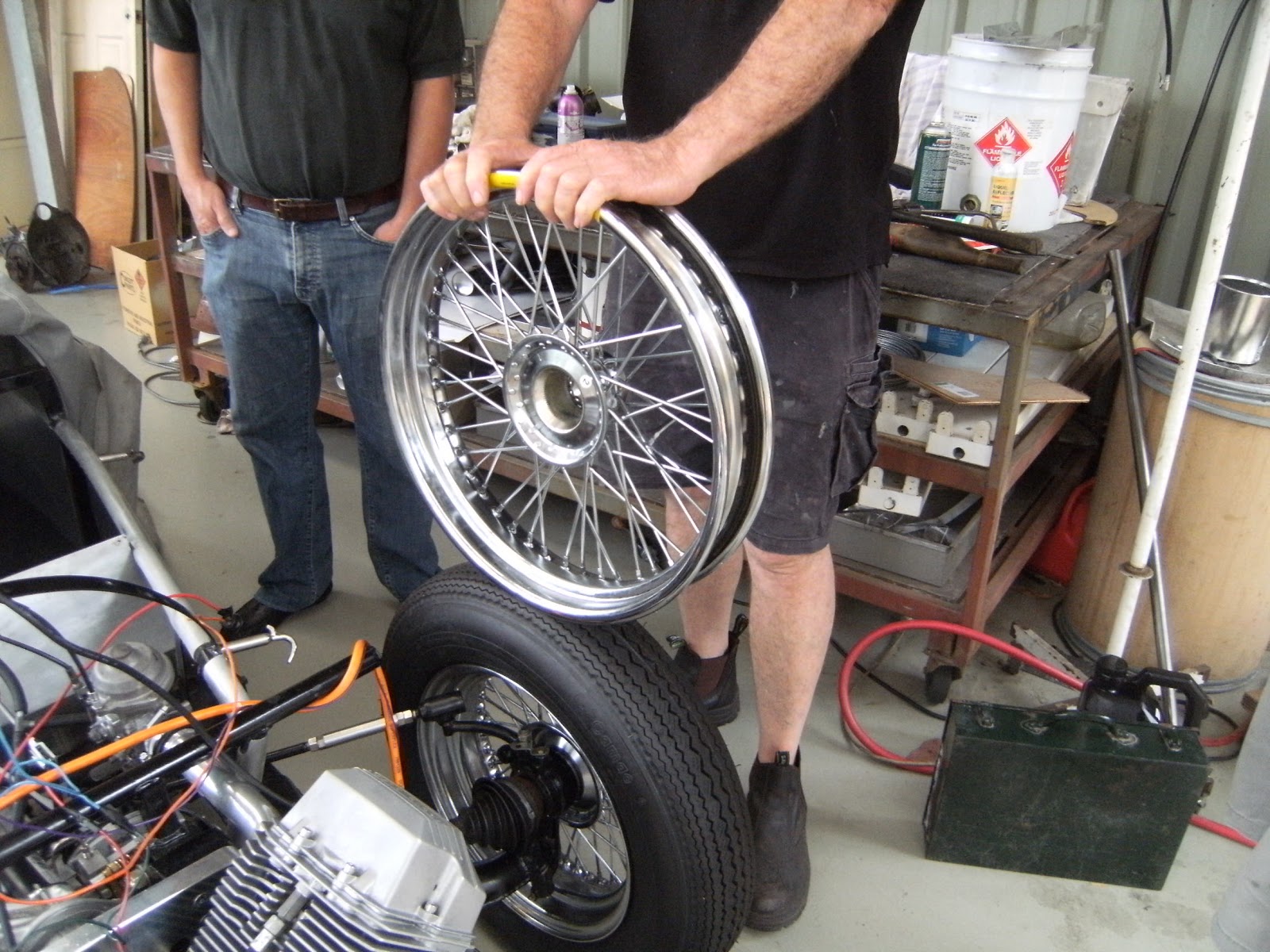

Peter has purchased 19" wheels so as to reduce his engine revs when cruising, he is yet to get tyres but coming soon.

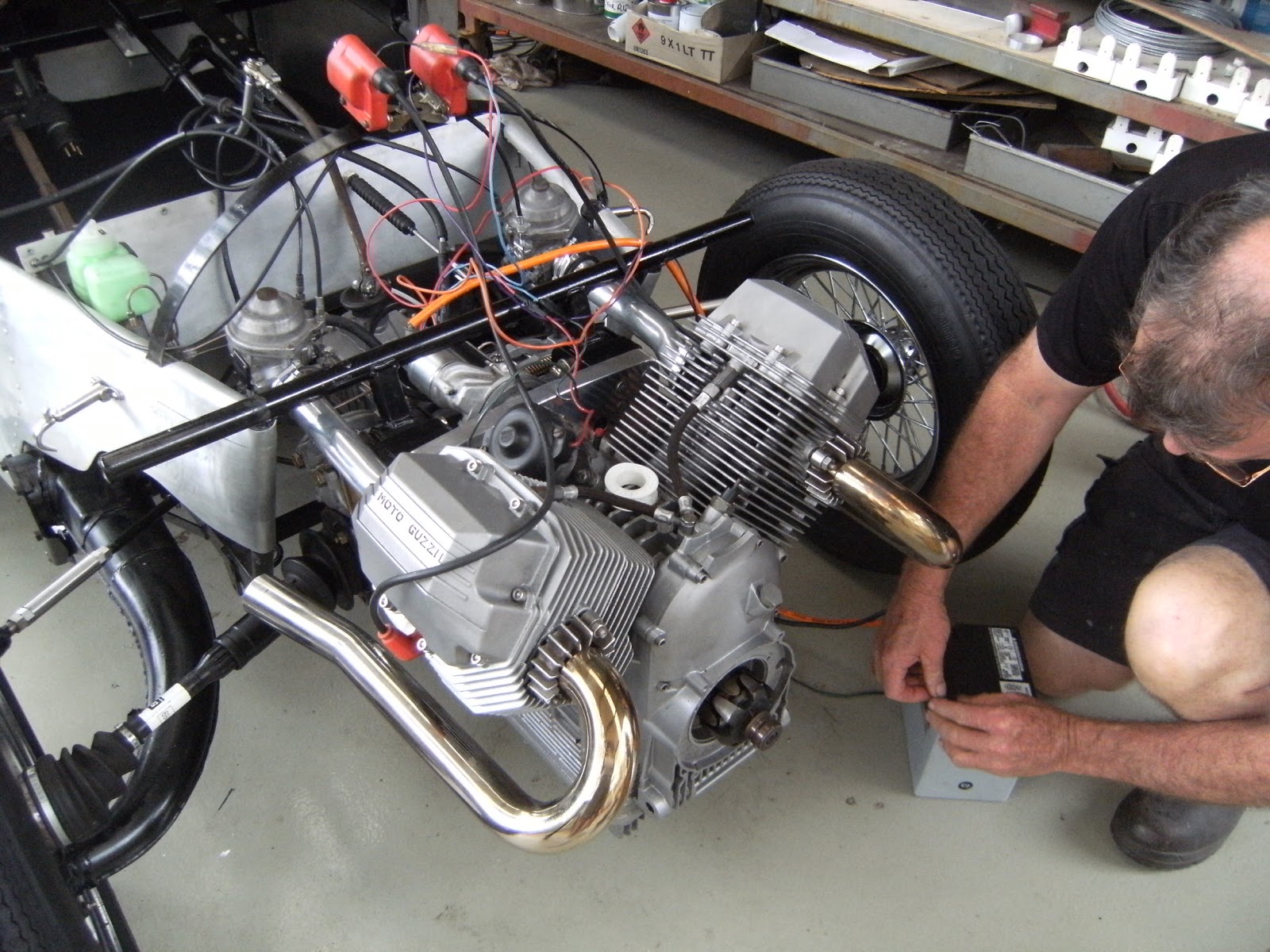

The engine has been water & bead blasted, inlet manifold tubes fabricated and Bing Carbs fitted.
The motor sounds glorious if  bit load for my camera but you will get the idea, impressed us no end.

Pssst, Wanna Hear it.

Bing Carbs.

Water & Bead Blasted Motor

Shiney New 19" Wheels

Drop her down and roll her out

Drive Line built Up

Fuel Tank

Disks and Calipers

Good as New Re-manufactured Brake Components

Size Difference Original Pemb to Bigger Better.

Gear Shift

Guzzi Motor Now Fitted

Peter has installed the pedals and also a mock up of the dash, he is going to have an engraved brass inlay around the instruments.

Bonnet Complete

With Louvers pressed into the Bonnet the body is nearly complete, just bonnet catches and hinges to go

Body Assembly

Curved louver tool worked well with a great result as can be seen in the bonnet Pic, Inner body section riveted in place and beetle back riveted in place all fit nicely ... all thats left to do is bonnet hinge and catches, and polish the hell out of it , then onto the Mechanicals cheers Peter

Curved Louver Blurb

I wanted louvers in my bonnet, my bonnet is curved.... so I made a curved tool to help keep the shape in the bonnet... Ive made a few samples just now need to make a press big enough to accommodate the bonnet cheers Peter

Curved Louver Die Set

Brass Nose Cone Fitted
